      Electrical and Electronic X-Ray Inspection

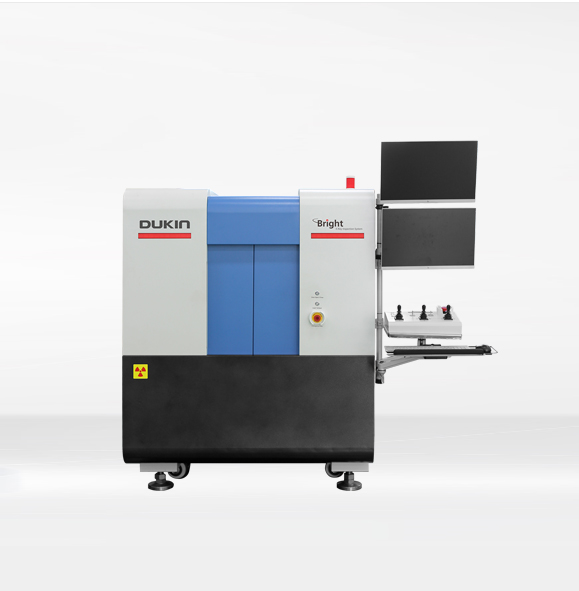

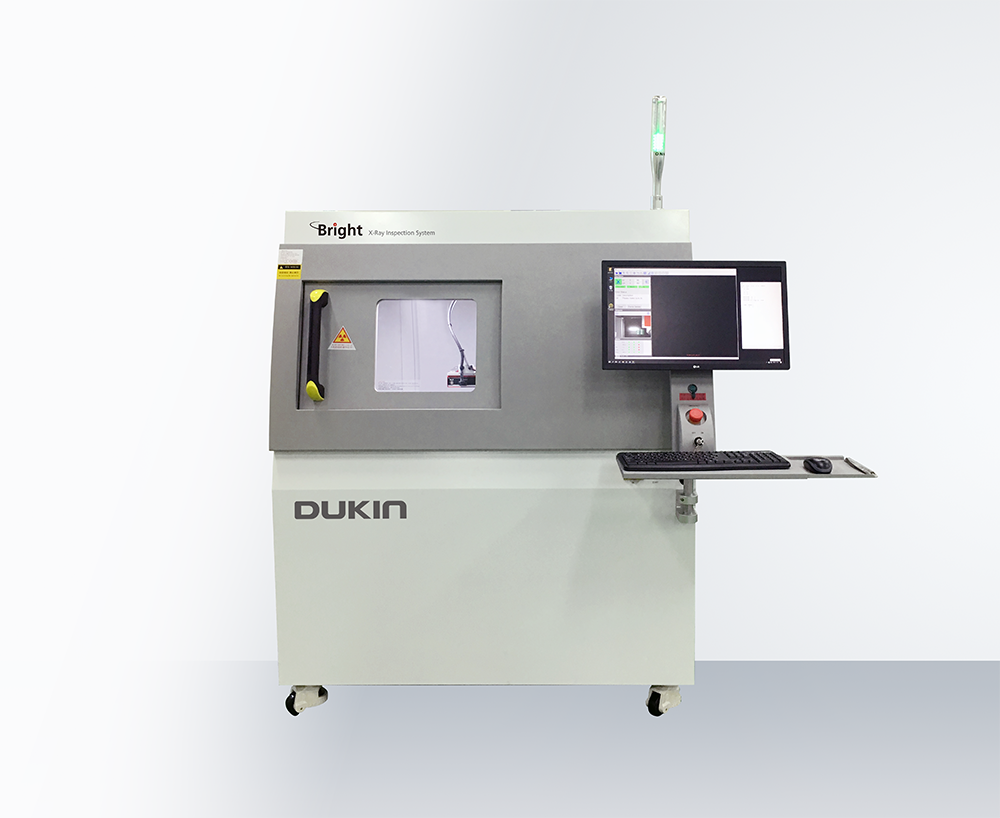

      Bright S Seires

      Precise and compact 2D X-ray inspection systems for electrical and electronic industries including PCB, SMT, BGA, semiconductor etc.


      Contact Sales
      Feature

      • X-Ray 2D Inspection system

        · Supports Multi-Language (Korean, English, Chinese)

        · Lowest maintenance cost since every parts are locally developed and manufactured.

        · Fast and clear image with easy to use UI and various filters.

        · Supports automatic defect(Pore/Crack) recognition (optional)


      • High performance oblique CT inspection system

        · High quality and real-time CT scan (Max 3min/scan)

        · Ultra precision CT table accuracy


      Specifications

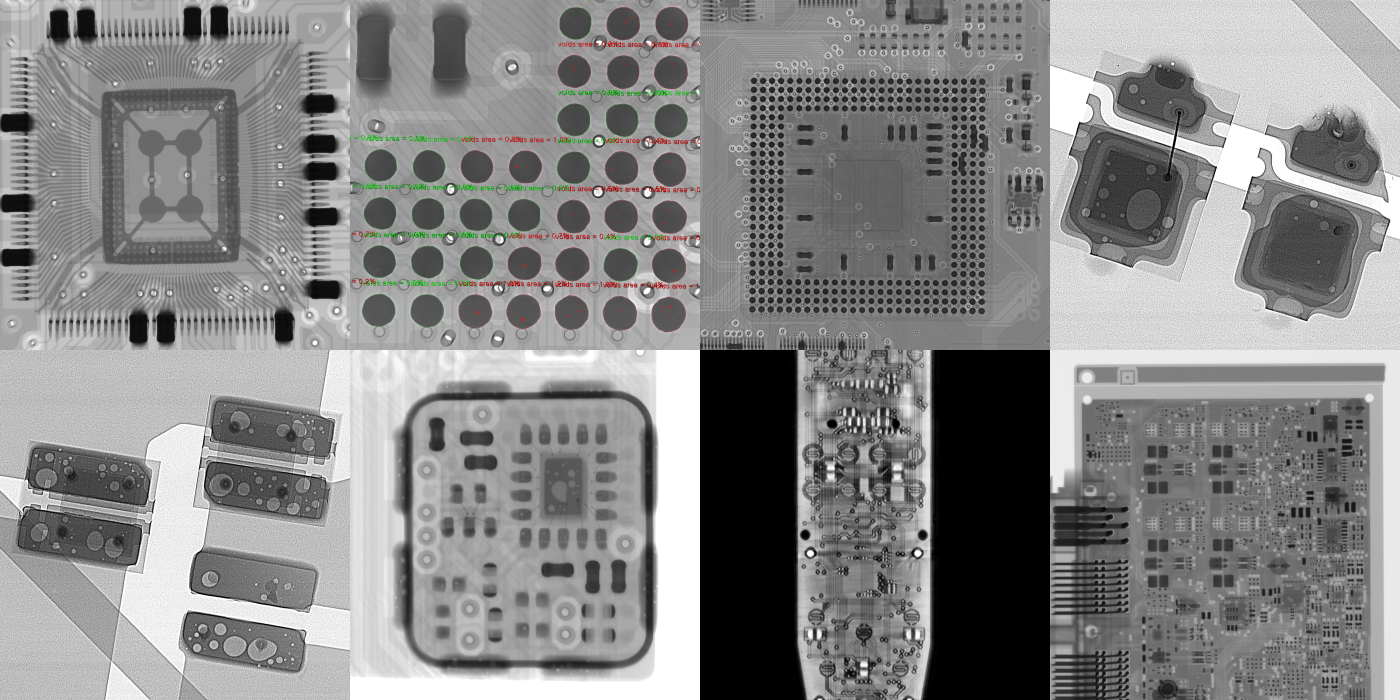

      ■ SMT, PKG, PCB


      ■ Battery & Mobile & Semiconductor

      ■ Cultural properties and relics

      System Dimension


      MODEL
      Bright 90S, SCT
      Bright 100S, SCT
      Bright 130S, SCT
      Bright 150S, SCT
      X-Ray Tube
      Voltage Range

      90 kV
      100 kV
      130 kV
      150 kV
      Current Range
      200 uA
      200 uA
      300 uA
      500 uA
      Max. Output
      8 W
      20 W
      39 W
      75 W
      Focal Spot Size
      5μm
      50 μm
      Flat Panel Detector
      Flat Panel Detector (Acive Area)
      116 mm X 146 mm
      Pixel Size
      49.5 μm
      Resolution
      10 μm





      Manipulator
      Loading Table Size
      400 mm X 400 mm
      XYZ Stroke

      400 mm X 400 mm X 200 mm
      Table Rotation
      360 °
      Max. Sample Weight
      Max 5 kg
      Tilt
      40 °
      Dimension (W X D X H)
      2000 mm X 1670 mm X 1800 mm (+Monitor 2700 mm X 1950 mm X 1950 mm)
      Equipment Weight
      2000 kg
      Environmental Conditions
      Power Supply
      220 VAC Single phase 50/60Hz
      Operation Temperature
      0 °C ~ 40 °C
      Humidity
      0 % to 90 %
      X-Ray Leakage Dose
      < 1μSv/Hour




      Specification are subject to change without notice

      Available software
      X-Ray Inspection Software

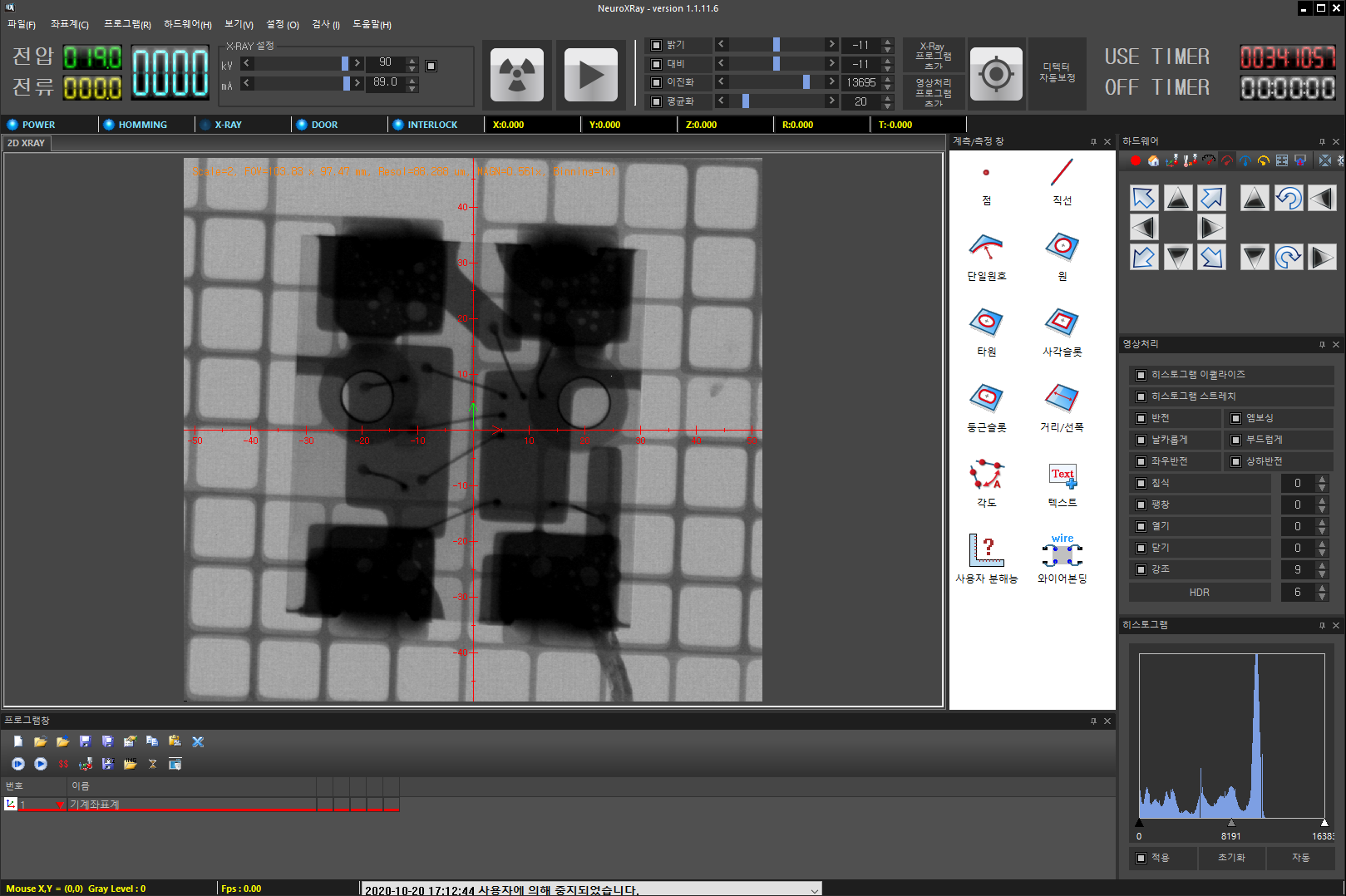

      NeuroXray is an industrial X-ray or inline 2D analysis and CT imaging software.

      ADR Solution NAXI

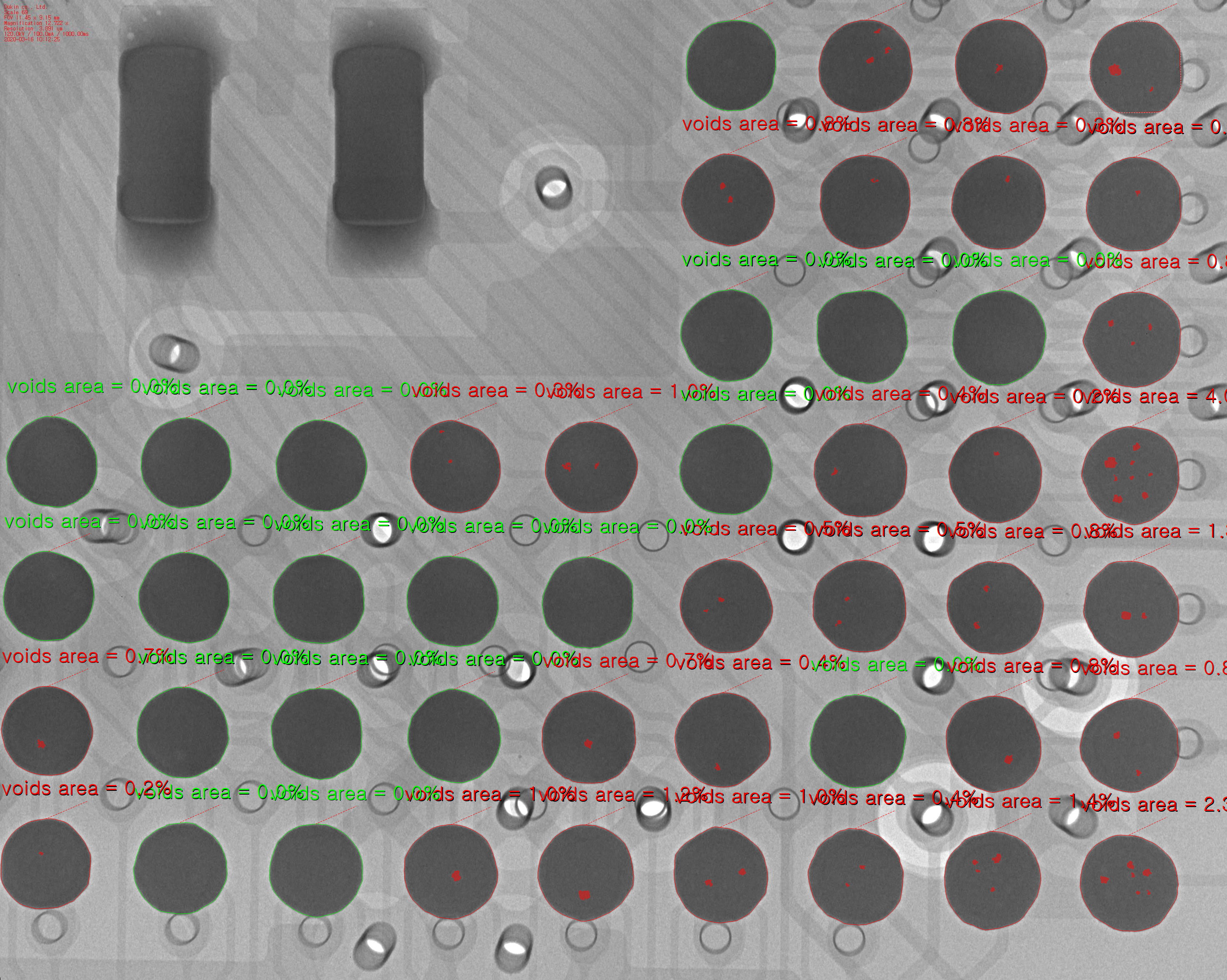

      NeuroAXI is a variety of image correction technologies Defects such as bubbles/foreign substances/cracks that are difficult to judge It is a software that automatically detects.

      CT Reconstruction Software

      NeuroInspect3D is a self-developed CT image building software.

      Application

      • SMT

      • PCB

      • Electronics

      • Battery

      • Harness

      • ECU Board

      • Mobile

      • Composite Materials

      • Cultural Objects

      • Micro CT

      • Oblique CT

      • Analysis

      • ADR
