NeuroMeasure

NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

Contact Sales

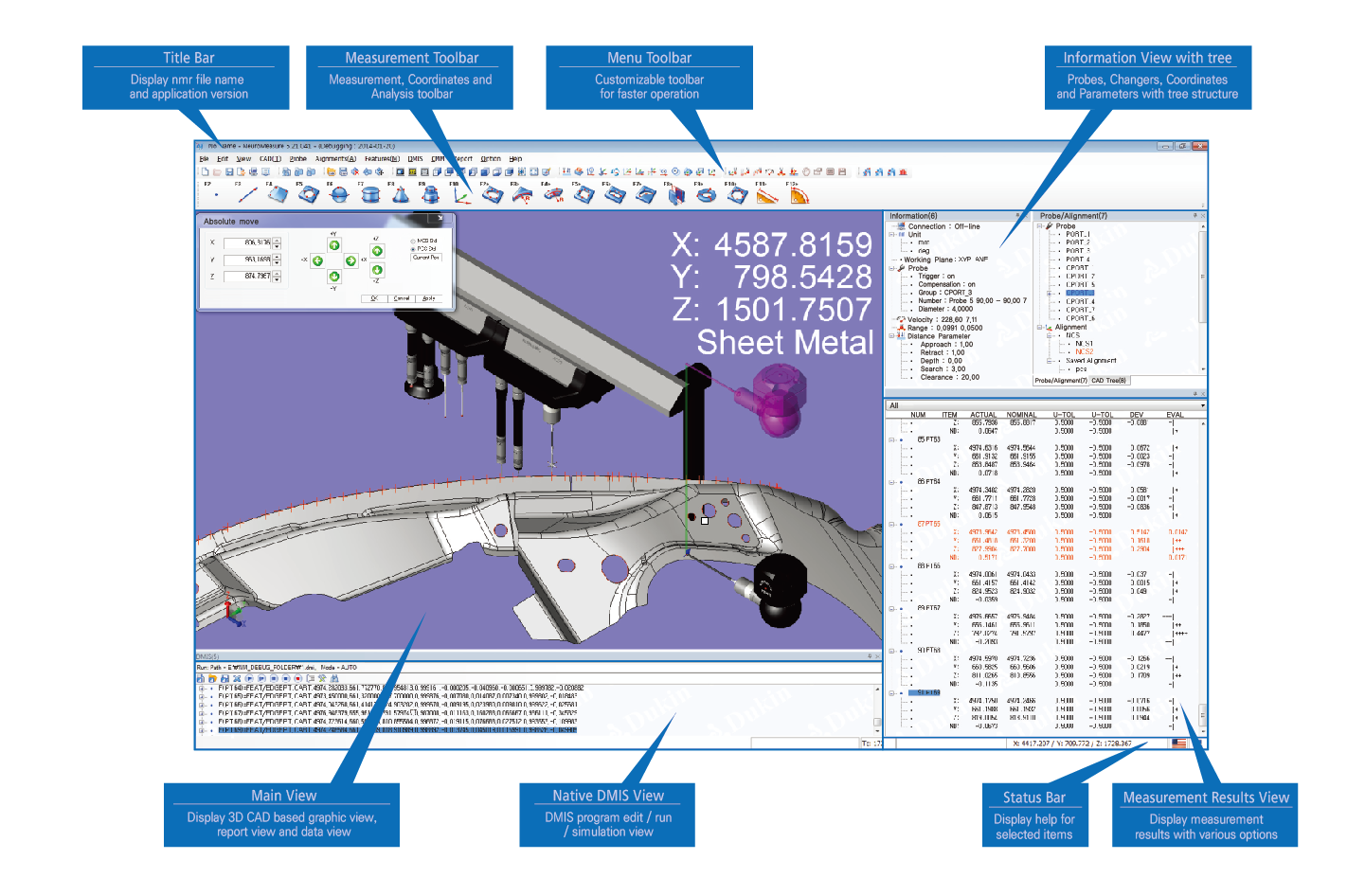

Function Introduction

· Extensive feature measurement

· Using On-line / Off-line mode simultaneously

· Display measured results and tool path

· Importing and exporting various CAD files (No converter required)

· One button constructions of more than 700 relative features

· Graphic report with color-map

· Uses standard DMIS Code

· Supports DMIS HLL (High Level Language)

· Applies ASME Y14.5 ISO GD&T standard

· Realistic Emulation & Stimulation

· Detects collision and constructs passage point automatically

· Provides feature analysis tool (calculation, copy, movement, mirror etc.)

· Applies Ghost function for easy manipulation and programming

· Provides easy to use editing functions (copy, paste, delete etc.)

· Data Analysis with various algorithms

· Various icons and toolbars

· Adopted Tree structure for faster learning curve

· Automatic application of general GD&T and ISO Tolerance

· Specialized calculation format on each feature (MMC, LMC, etc..)

· Supports Multi-languages (Korean, English, Chinese)

· High quality rendering

· Auto feature recognition and edge detection

· Supports curve, surface and sheet metal measurement

· Supports various output formats (Excel, Text, CAD format)

Features 1

Convenient Measurement & Construction of Features

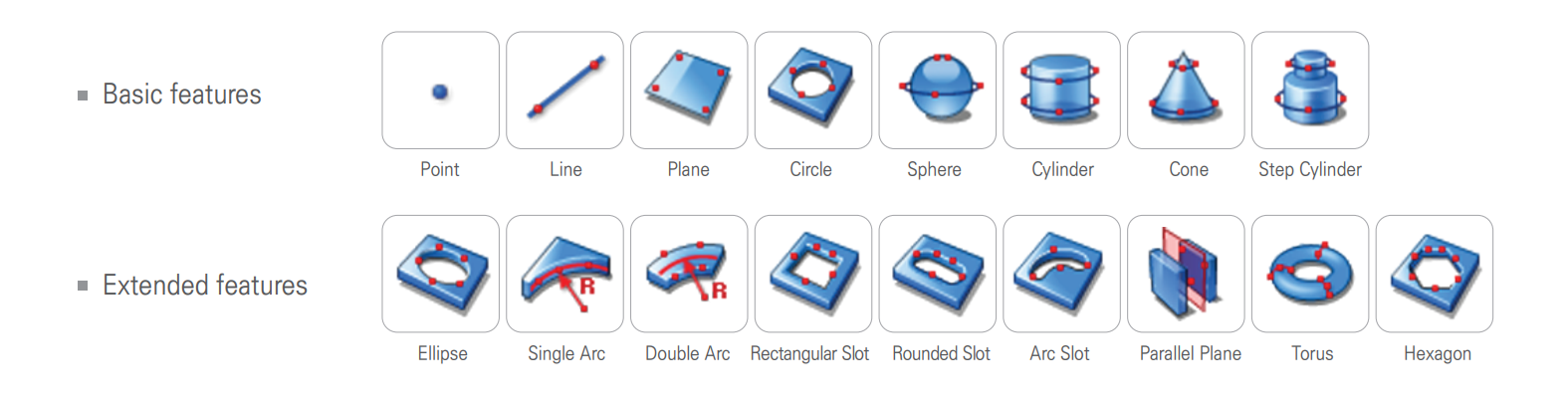

17 types of fundamental features

· Supports various automatic measurement on each feature

· Certified by German PTB to be in the class 1 of the smallest deviations in algorithms of NeuroMeasure5

· Auto-feature recognition edge detection using CAD model

· Indicates measurement path


Supports over 700 relative features

· Easy to use 1-click relative icons

· Easy to access for beginners due to intuitive relative feature generation

· Construction of scribed circle, minimal contacted circle, various distance and angle calculation, etc.

· Construct Offset/Mirror/Project/Move/Rotate features

· Generate related features using measured features (output as a new feature)

· Extract related features - circle to point, ellipse to cylinder, slot to line & circle, etc.

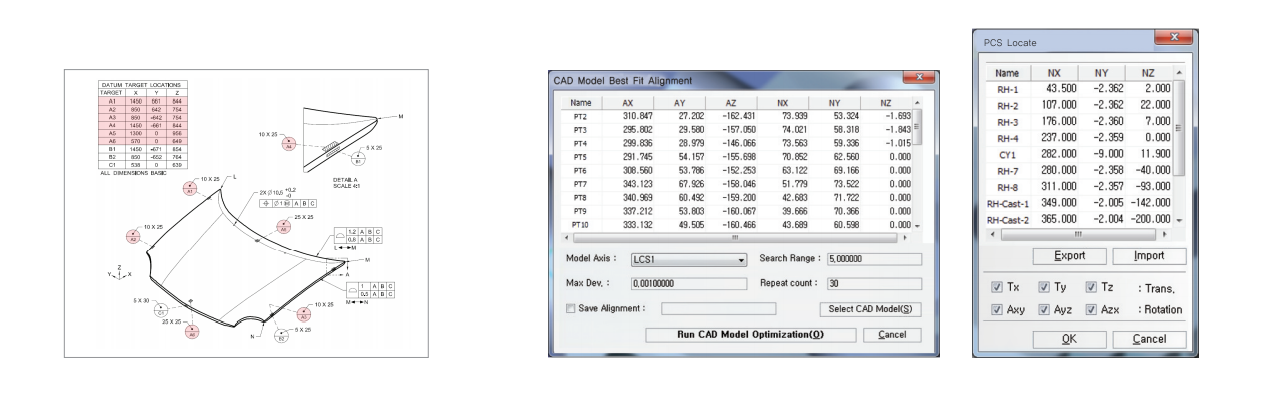

Accurate Bestfit with CAD model
· Supports iterative coordinates for target datum alignment
· Supports advanced bestfit algorithm based on CAD model
· Easy programming through the input of target points

Supported CAD formats
· Commercial CAD: CATIA V4, V5, Simens NX, PTC Creo(ProE), Inventor, Solidworks, SolidEdge
· Neutral format: IGES, STEP, VDA-FS
· Commercial kernel: ACIS, Parasolid
· Supports latest CAD version
· No need of external converter or license

CAD graphics
· High-quality rendering
· Advanced hidden line removal algorithm
· Supports view of surface and wireframe rendering
· Applies transparency and shadow attributes

Display measurement tool path
Easily check and simulate DMIS path
Indicates automatic/manual measurement path on a real-time basis
Stable operation with the output of tool path before the measurement process

Construction and transformation of geometry
Easily edit probe path with Ghost function
Convenient positional movement using mouse
Applies variously: probe position, absolute/relative movement etc.
Features 2

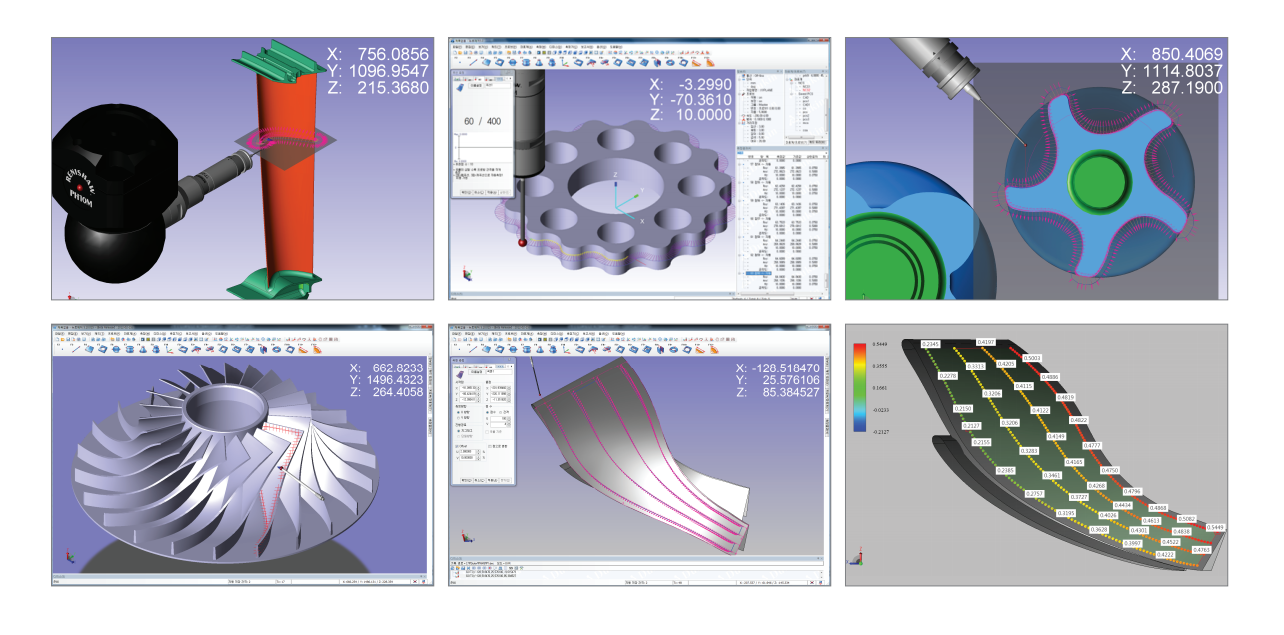

Powerful Free Curve / Surface Measurement and Analysis

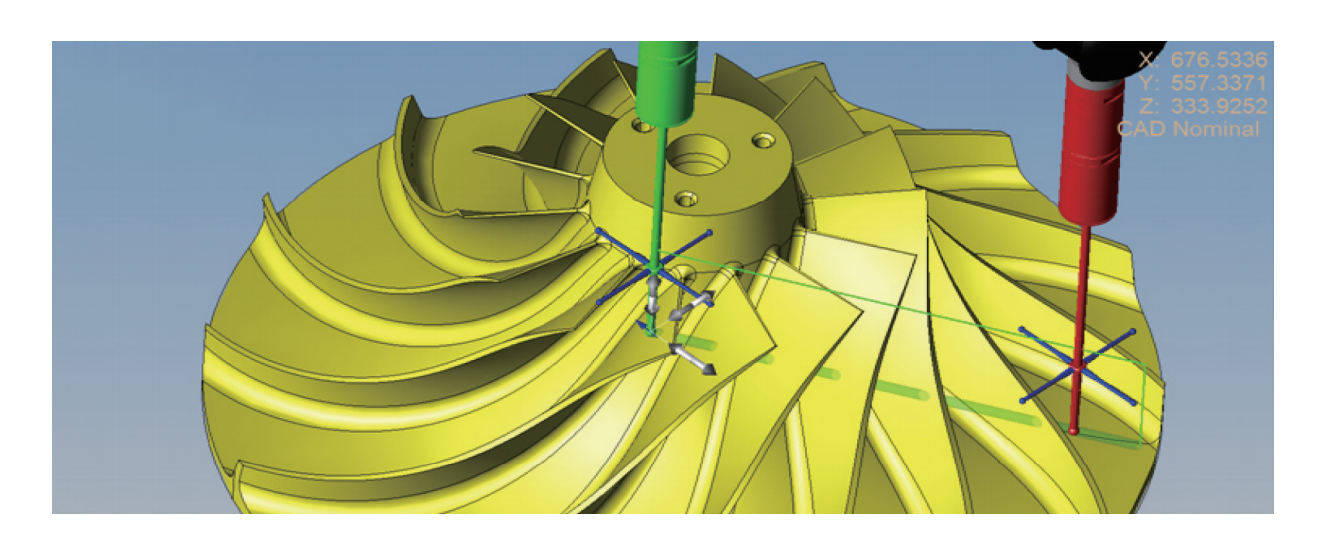

Generate measuring positions by slicing CAD model
Generate measuring positions by edge offset of CAD model

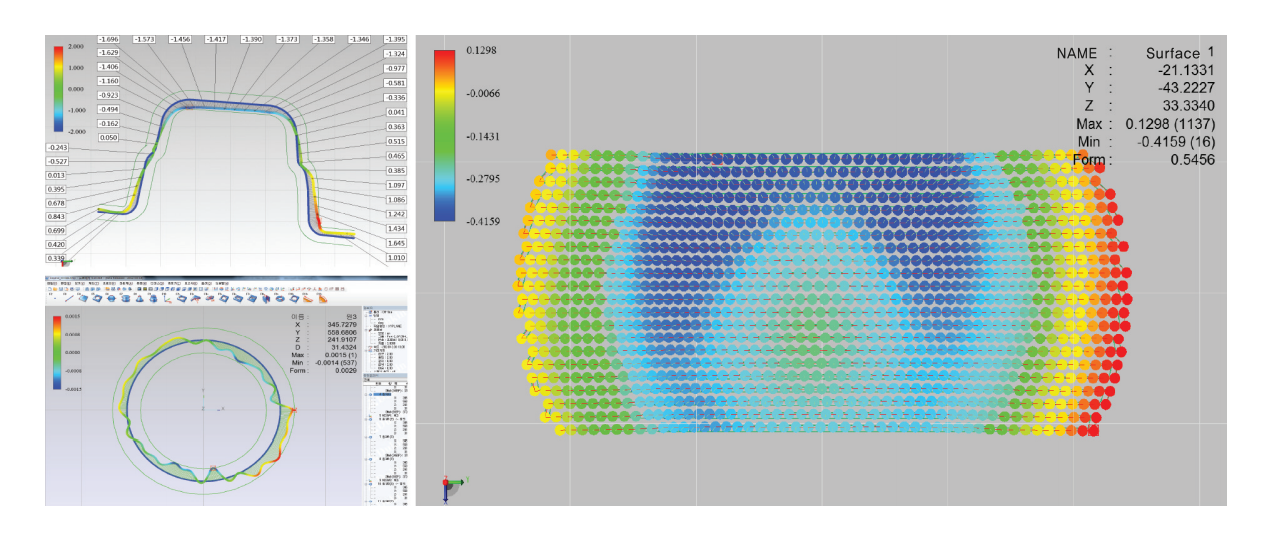

UV Grid path generation on free curved surface
Align points according to curvature distribution
Automated tool path generation by patented technology (patent number: 10-2010-0041650)
Optional advanced data analysis tool, NeuroSurf
: Easy to use analysis tools for blade, impeller, cam and any other products in according to customer requirements

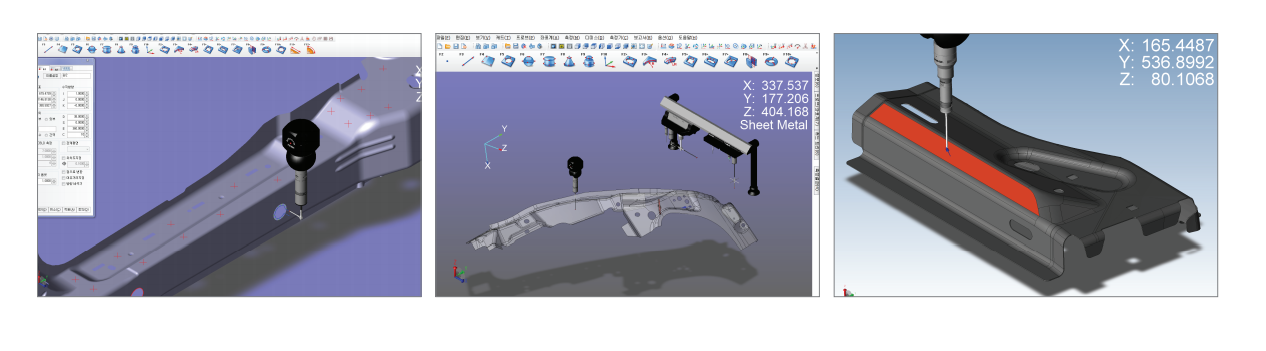

Sheet metal measurement

Multiple solutions are implemented to handle sheet metal bending errors

Easy measurement of trimmed edges

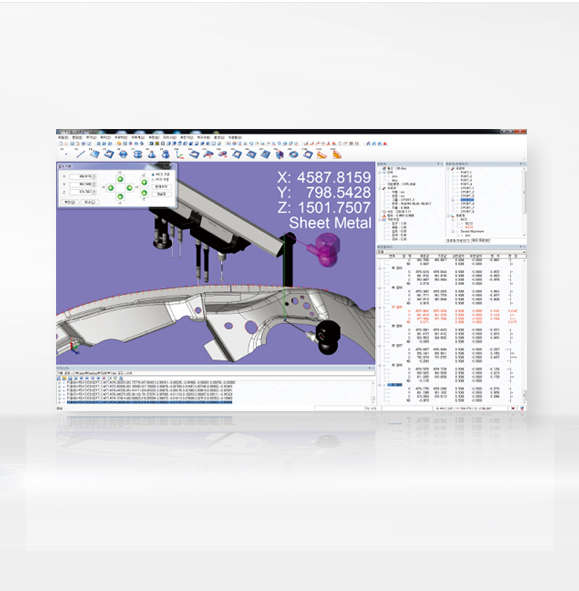

Compensation of measuring position through VECBLD (Hole/Slot etc.)

Supports 2D Sheet CAD model measurement (Top side, Bottom side)

Extract deviations from on-line measurement based on CAD geometry

Simple programming through the feature recognition of CAD model


Virtual Simulation and Automatic Tool Path Generation
Verifies collisions between CAD model and machine including probes and
Automatically generates safe tool path
Prevents all potential collisions in the actual measuring process
Test the program by offline simulation and regenerate collision free tool path
User-defined boundary range for collision-safe path for optimal performance
Additional margin parameters for better safety
Fast and robust tool path generation algorithm
Improved productivity by offline inspection program generation with robust simulation on CAD model

Online / Offline / VR Mode
Easily change online/offline mode with one-click menu
Supports real-time emulation of online machine operation
VR Mode: Provides optimized environment for educational training with inexpensive universal joystick and virtual CMM simulation
Features 3

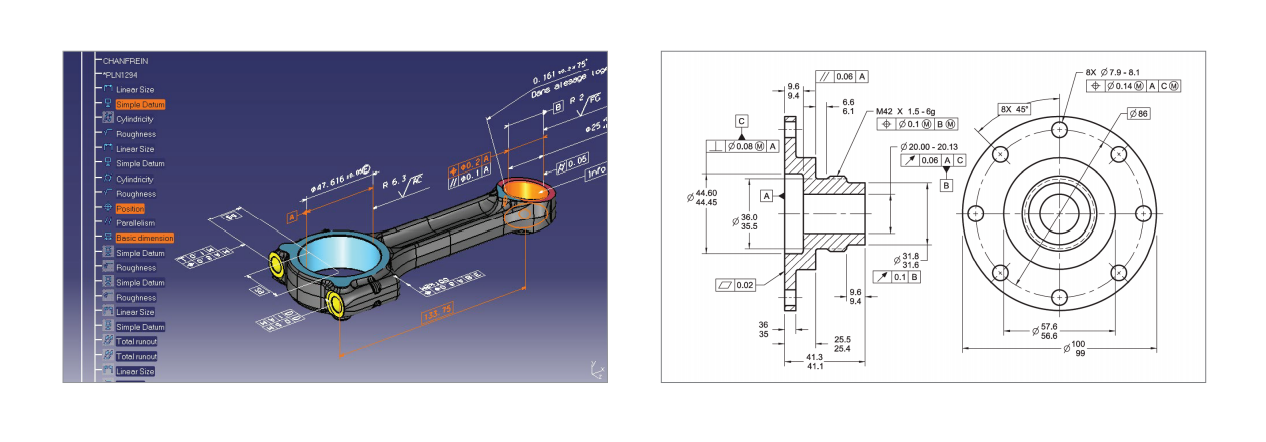

Perfect GD&T Evaluation Support the ASME Y14.5 and ISO1101 GD&T standard specification Accurate GD&T evaluation of 3-dimensional feature Easy to use interface by supporting standard symbols Top accuracy in evaluation of GD&T analysis Convenient contour evaluation method with CAD model Bonus tolerances are supported (MMC, LMC) Analyzes deviation of actual feature as applying FIM (Full Indicator Movement) method

Adopts Full Native DMIS Uses standard DMIS code Supports ANSI/DMIS 105.2-2009: DMIS 5.2 Standard No extra converter is required due to its native DMIS engine Ease of use Maximized convenience due to the adoption of tree structure Icon structure which enables easy, fast understanding, and practical edit Verify DMIS code through the offline execution Automatically detect collisions and generate of automatic passage points Supports multiple feature measurement using array construction Built-in user convenience function such as multi-media output, comment DMIS mirror etc. Supports DMIS HLL (High Level Language) Possible to write interactive program (Variable statement, condition setting, repetition setting, calculation etc) Supports the writing of user programming Provides various menus and debugging tools

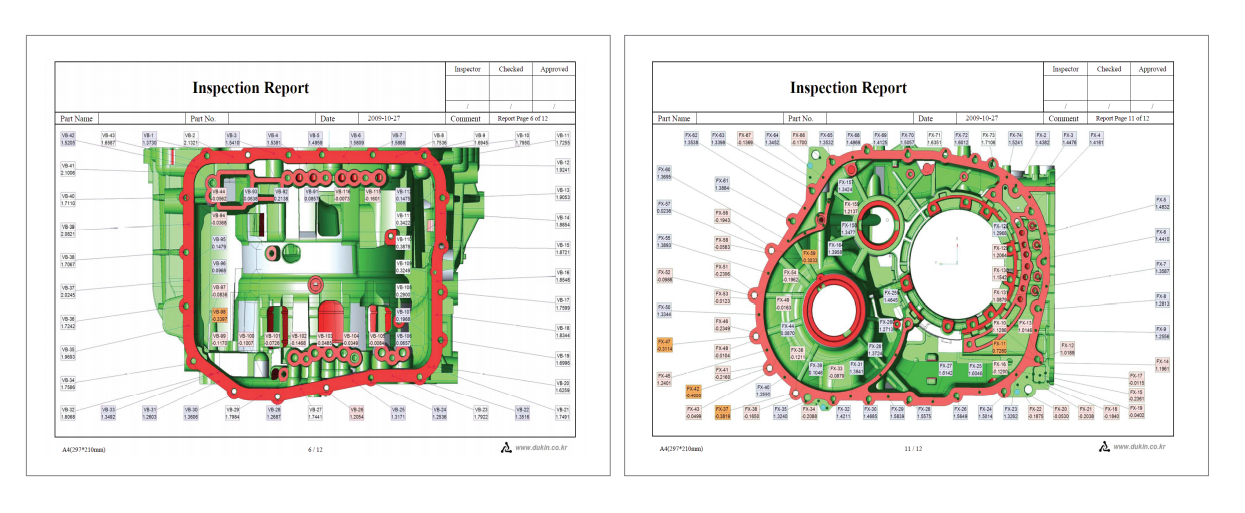

Customizable Graphical Reports Save / Load / Edit multiple user defined report documents Support color map for better graphical representation Support detailed error distribution report for selected features with labels Generation of measured and relative features with distance and angle labels Automatic label alignment (fit, align and control point) Undo, redo functionality for ease of use Export results with various file formats: Excel, PNG, BMP, JPEG, GIF, TIF etc. Additional functions Supports on-line report generation by DMIS operation Supports multi page reports and export into Excel format Easy to create/edit the report by mouse drag and drop user interface Integrated management through the NeuroMeasure project file
Features 4

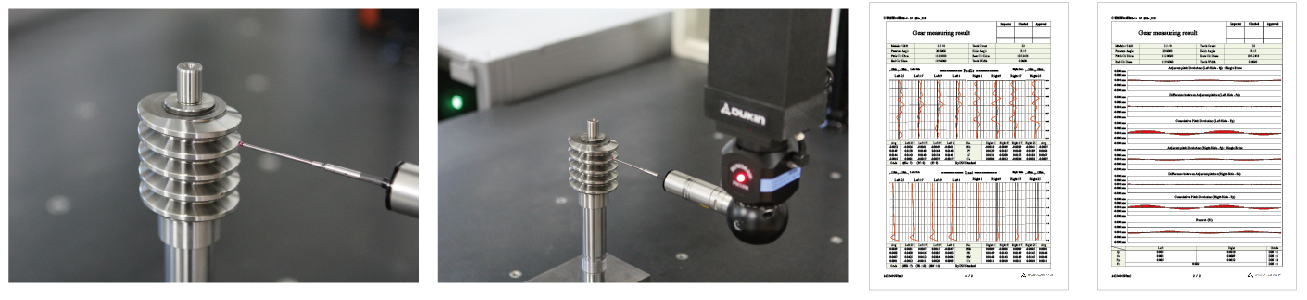

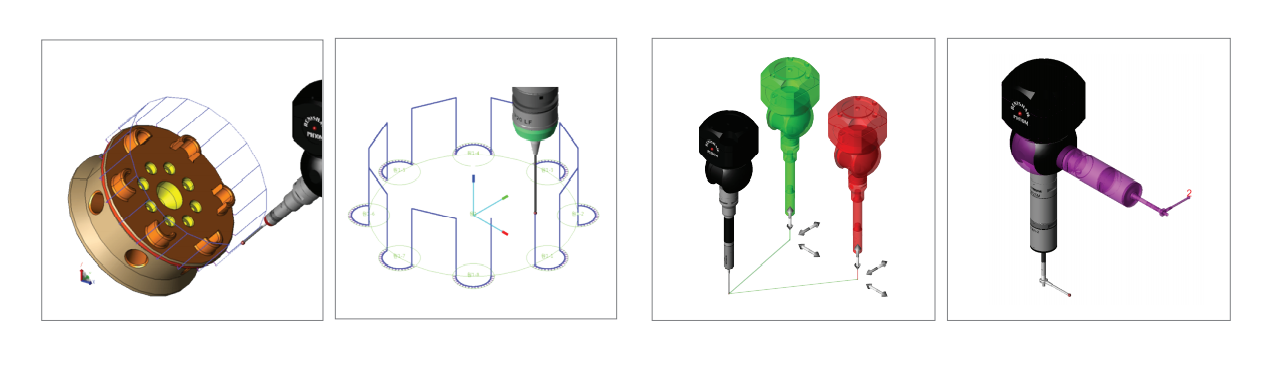

Excellent Interoperability Supports I++DME communication DKS Controller Renishaw UCC server Supports multi-languages Supports language changes (Korean, English, Chinese) in one-click menu Possible to support any languages which customers recommend through the customizing service Supports all tools and probes for the measurement Manual Probe Head, Motorized Probe Head, Revo, PH20 Possible to define and construct various probe groups including star probe and user-defined probe Supports automatic tool/probe/stylus changer Provides optimized working convenience by providing graphic interface which is identical to the installed tool change rack Gear Module NeuroMeasure gear module is a specialized software for spur gear, helical gear, worm gear, advanced spur gear, and advanced helical gear measurement NeuroMeasure gear module operates as the integrated NeuroMeasure option, and it is able to measure all parts of gear or some features without any rotary table

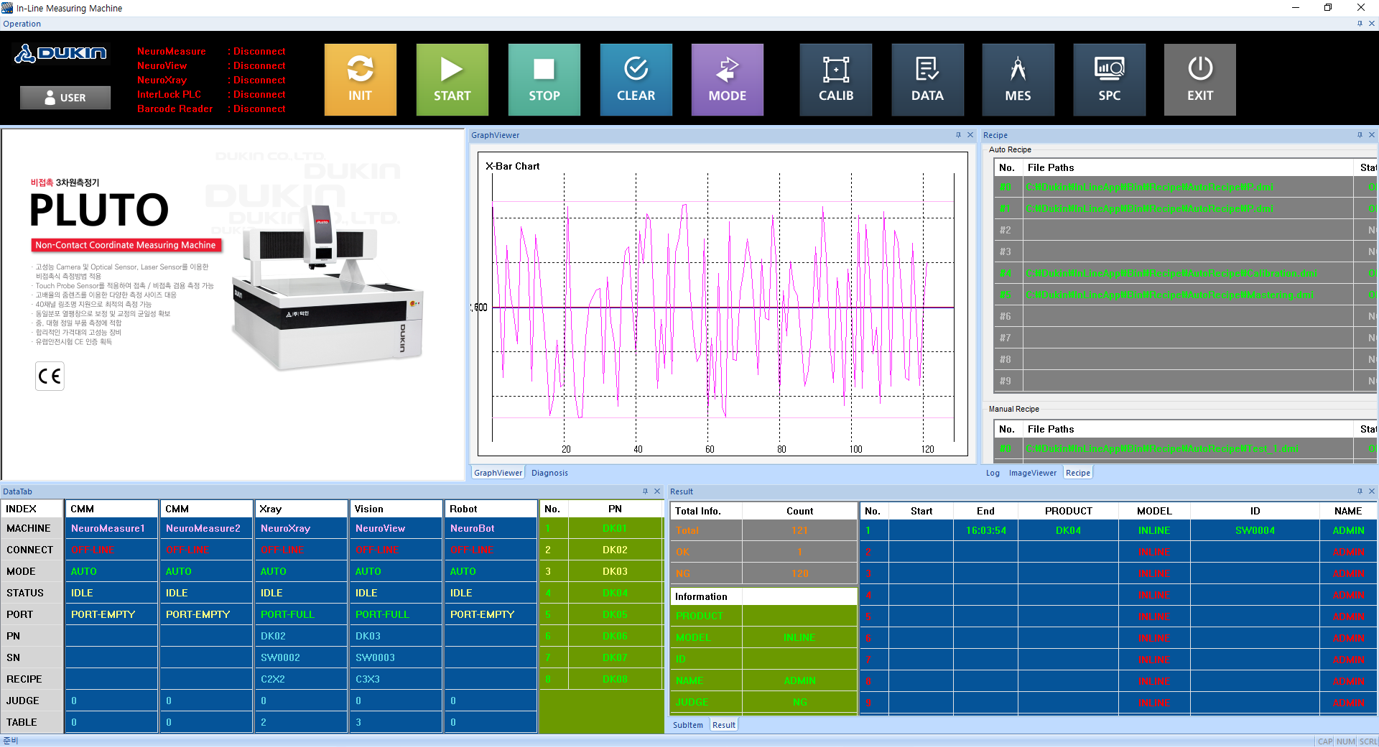

Automation (in-line process) With a professional Dukin's "Automation Software" service, you can realize smart factory-intelligent CMM measurement automation process right now. Implement smart factory with seamless integration of every measurement data including facility utilization ratio. In-house MES, PLM, PMI Solution is directly linked with various report from the "Automation Software". We are always ready to consult your needs and happily work to realize your smart factory needs.
