      Medium Size Non-Contact 3D Coordinate Measuring Machine
      PLUTO

      Multi-Sensor CMM offering wide range of sensors

      Recommended for medium and large precision parts inspection process

      Contact Sales
      Feature

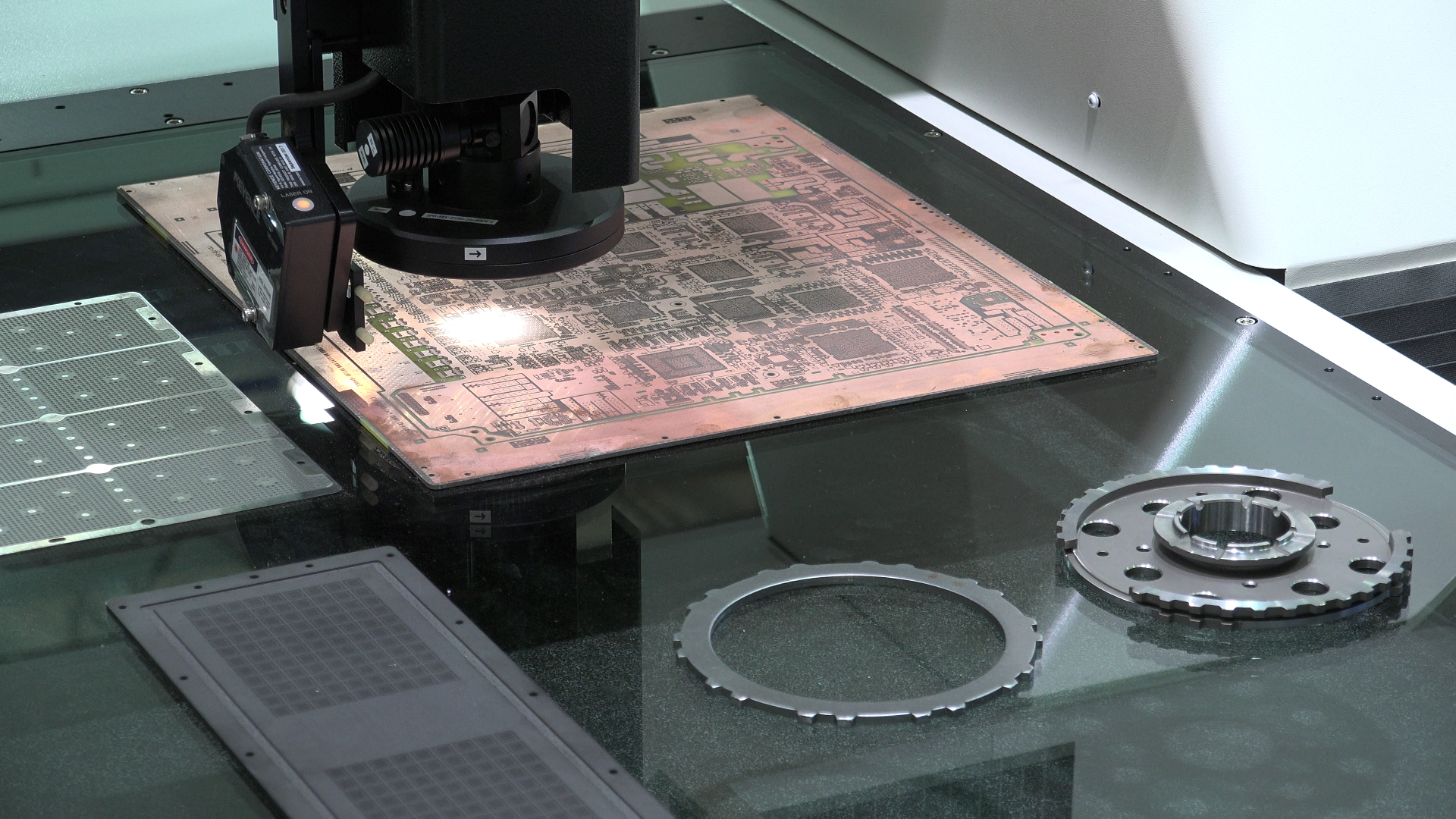

      • · Supports multi-sensor seamlessly including Automatic Zoom CCD Camera, Laser sensor and touch probe

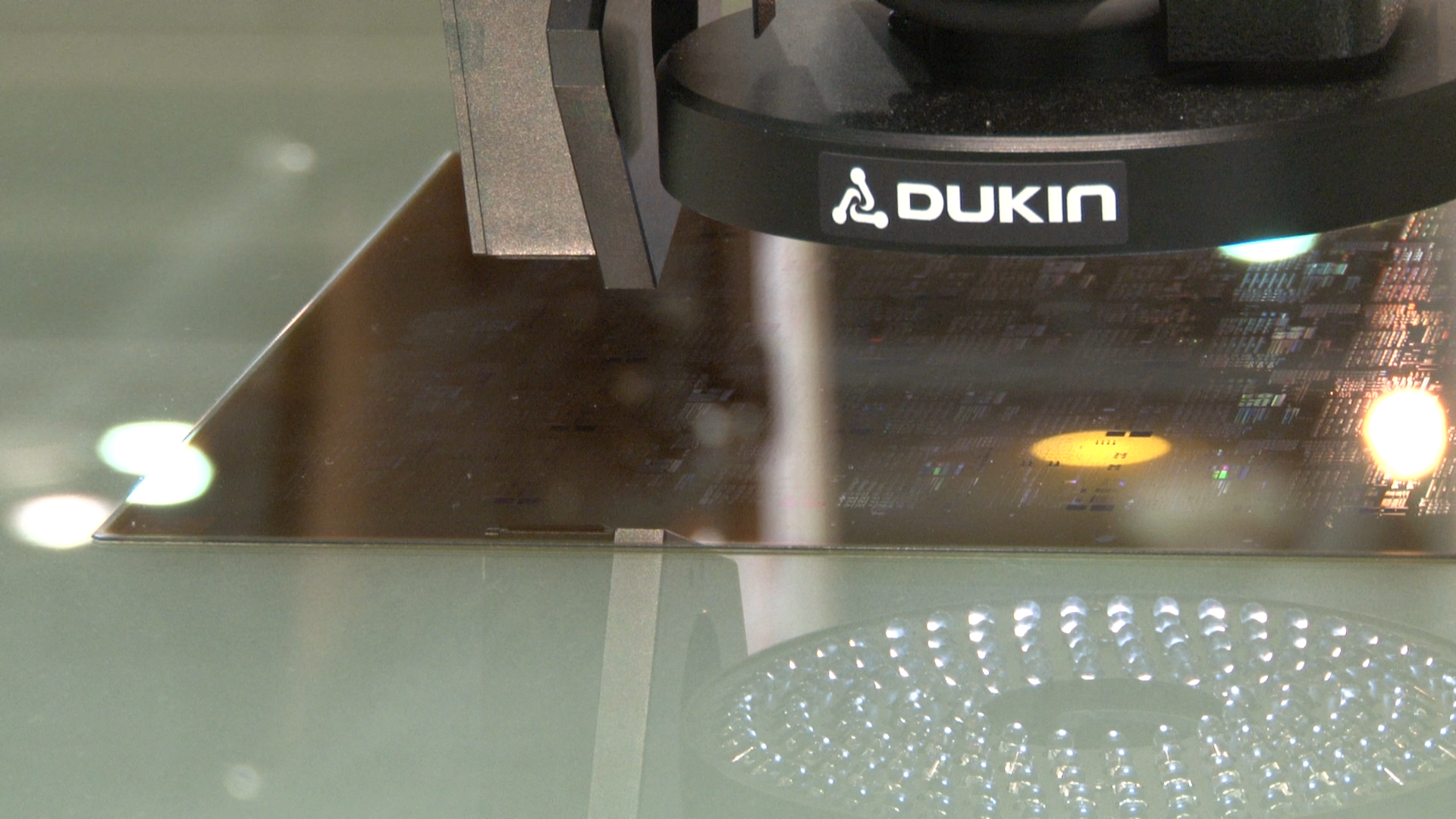

        · Optimal measurement quality with 40 channel programmable LED ring light illuminator

        · High definitive programmable digital zoom lenses for precision measurement

        · Adopted granite on main axes which guarantees high thermal stability and maintains measuring precision

      • · Best for measuring small parts such as precision molds and electronic parts.

        · High quality and cost-effective design

      Specifications


      MODEL
      451
      561
      681
      8101
      10121
      10181
      12161
      12201
      15251
      18301
      Measuring Range (mm)

      X
      400
      500
      600
      800
      1000
      1000
      1200
      1200
      1500
      1800
      Y
      500
      600
      800
      1000
      1200
      1800
      1600
      2000
      2500
      3000
      Z
      150
      150
      150
      150
      150
      150
      150
      150
      150
      150
      Overall Dimensions (mm)

      X
      1400
      1500
      1600
      1800
      2000
      2000
      2200
      2200
      2500
      2800
      Y
      1700
      1800
      2000
      2200
      2400
      3150
      3250
      3550
      4050
      4550
      Z
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      Resolution (μm)
      0.1

      Maximum Permissible Error


      per ISO 10360-2 (μm, L:mm)

      XY
      2.5+L/300
      3.5+L/300
      4.0+L/300
      5.0+L/300
      6.5+L/300
      Z
      2.5+L/200
      2.7+L/200
      3.0+L/200
      Maximum Velocity (mm/s)
      400
      Maximum Workpiece Weight (kg)
      25
      Machine Weight (kg)
      1650
      1850
      2200
      2900
      3500
      4750
      5200
      7650
      10000
      10500




      MODEL
      452
      562
      682
      8102
      10122
      10182
      12162
      12202
      15252
      18302
      Measuring Range (mm)

      X
      400
      500
      600
      800
      1000
      1000
      1200
      1200
      1500
      1800
      Y
      500
      600
      800
      1000
      1200
      1800
      1600
      2000
      2500
      3000
      Z
      250
      250
      250
      250
      250
      250
      250
      250
      250
      250
      Overall Dimensions (mm)
      X
      1400
      1500
      1600
      1800
      2000
      2000
      2200
      2200
      2500
      2800
      Y
      1700
      1800
      2000
      2200
      2400
      3150
      3250
      3550
      4050
      4550
      Z
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      1950
      Resolution (μm)
      0.1

      Maximum Permissible Error


      per ISO 10360-2 (μm, L:mm)

      XY
      2.8+L/300
      4.0+L/300
      4.3+L/300
      5.0+L/300
      6.5+L/300
      Z
      2.8+L/200
      3.0+L/200
      3.0+L/200
      Maximum Velocity (mm/s)
      400
      Maximum Workpiece Weight (kg)
      25
      Machine Weight (kg)
      1700
      1900
      2250
      2950
      3550
      4800
      5250
      7700
      10050
      10550


       ■ Specification are subject to change without notice

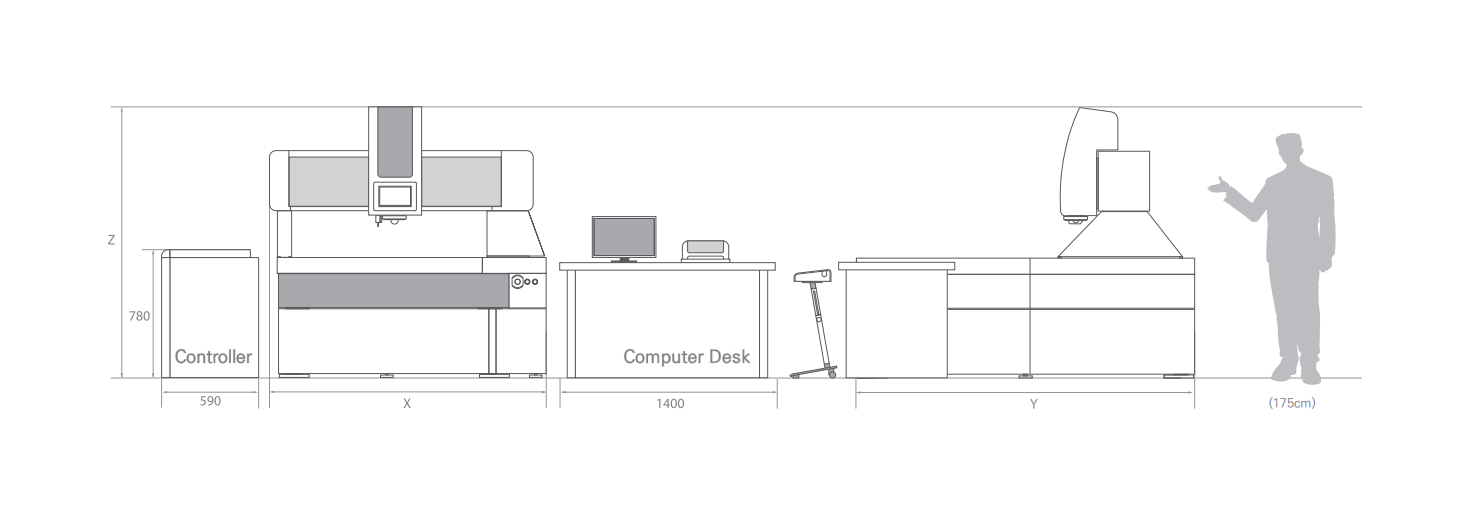

      System Dimension

      Specification are subject to change without notice.

      Available software
      Non-contact CMM Software
      NeuroView is multi-sensor measuring software which supports CCD camera, LD sensor and touch probes. NeuroView is developed to provide the excellent extendibility which integrates convenient user interface, powerful calculation/analysis, and high-quality graphic report for automatic measurement / inspection process.
      Accessory

      • Joystick

      • Image Sensor

      • Motorized Zoom Lens

      • Power Ring Light

      • Coaxial & Back Light

      • Laser Displacement Sensor

      • Chromatic Confocal White Light Sensor

      • Fixed & Manual Indexing Probe Head

      • Tool Changer

      • Master Gauge

      • Flattening Fixture

      • Navigation Monitor

      • TTL Laser AF

      • CAD Interface

      • Metrology Fixtures

      • Vacuum Chuck

      • Isolator

      • UPS/AVR
