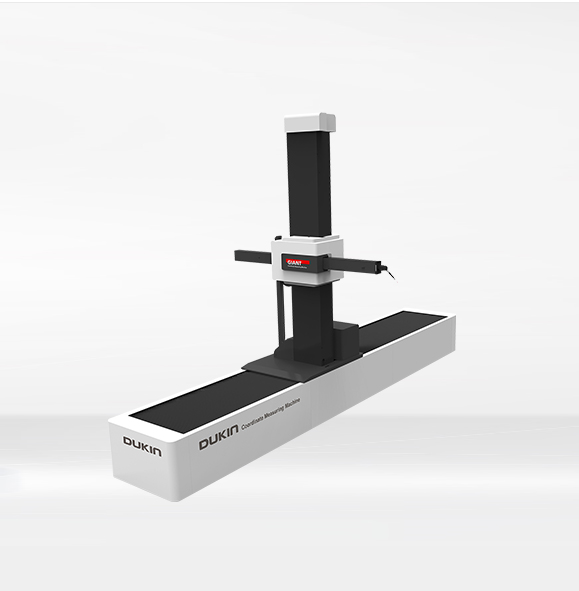

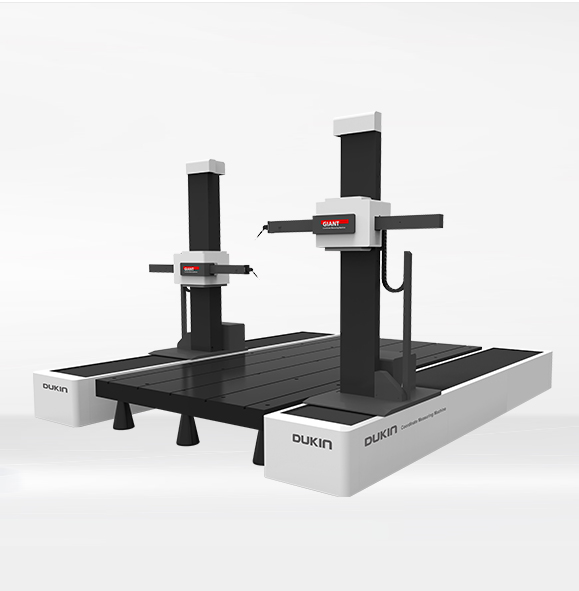

      Horizontal Arm Coordinate Measuring Machine (Large Size)
      GIANT

      Horizontal arm type structure which realizes excellent workability and best measuring precision accuracy

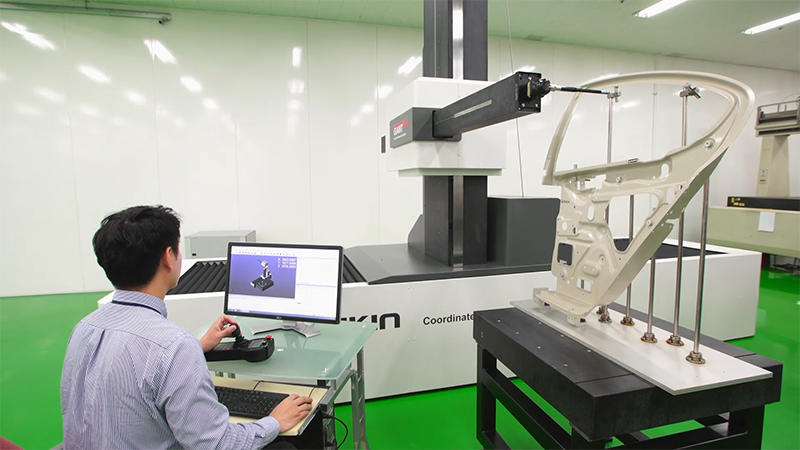

      Best suited to measurement of large parts such as automotive, shipyards, and aerospace industry

      Contact Sales
      Feature

      • · Horizontal arm type structure which realizes excellent workability and best measuring precision accuracy

        · Air bearings on all axes for high stability at high travel speeds

        · Adopted granite on all axes which guarantees high thermal stability and maintains measuring precision

        · Designed for high rigidity which improves productivity through high speed operation

        · Adopted specialized rigid air bearing which maintains structural stability and rigidity/high precision

      • · Best suited to measurement of large parts such as automotive, shipyards, and aerospace industry

        · High quality and cost-effective design· High quality and cost-effective design

      Specifications


      MODEL
      X
      Y
      Z
      Measuring Range (mm)
      ~ 15000
      1200 ~ 1600
      1500 ~ 3000
      Resolution (μm)
      0.1

      Maximum Permissible Error


      per ISO 10360-2 (μm, L:mm)

      EO.MPE
      12.0+10L/1000 ~ 30.0+10L/1000
      RO.MPL
      12.0 ~ 30.0
      Maximum Velocity (mm/s)
      300
      Air Requirements (kg/cm2, ℓ/kg)
      6, 55
      EO, RO with TP200 or TP7M


      ■ Specification are subject to change without notice.

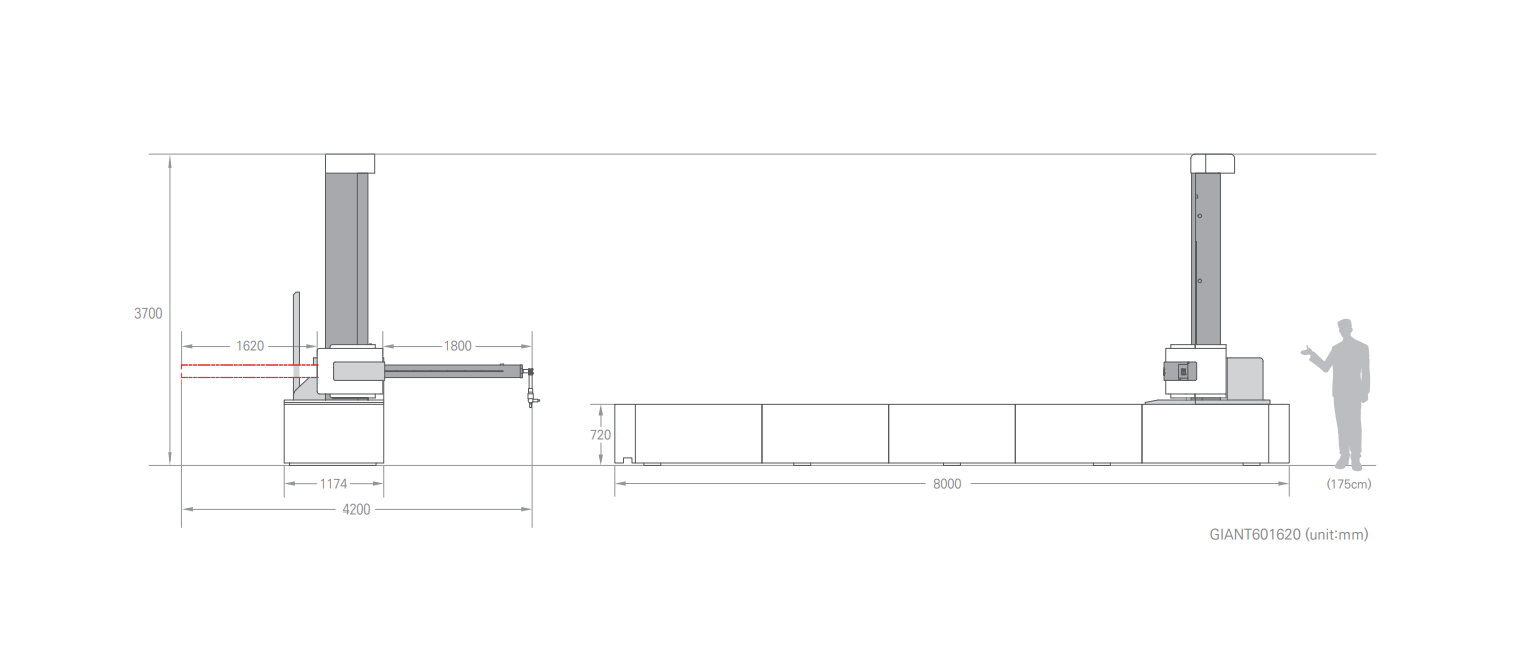

      System Dimension

      Specification are subject to change without notice

      Available software
      CMM Software
      NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

      Accessory

      • Joystick

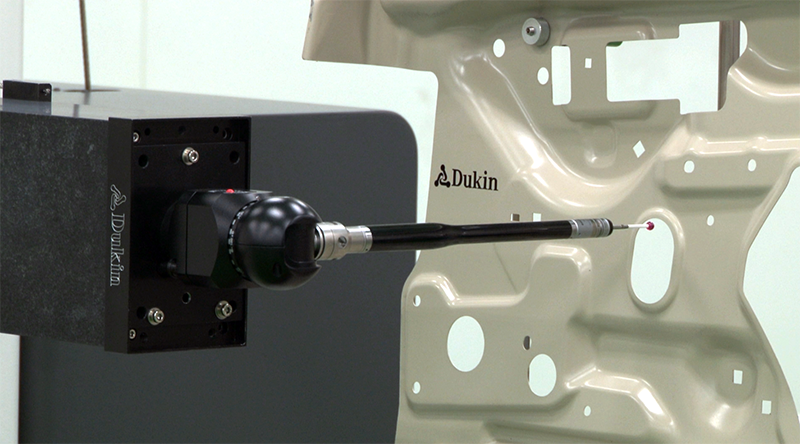

      • 5-Axis Probe System

      • 3-Axis Probe System

      • Manual Probe System

      • Touch Probe Sensor

      • Scanning Probe Sensor

      • Laser Scanner

      • Auto Changer Rack

      • Stylus and Fixtures
