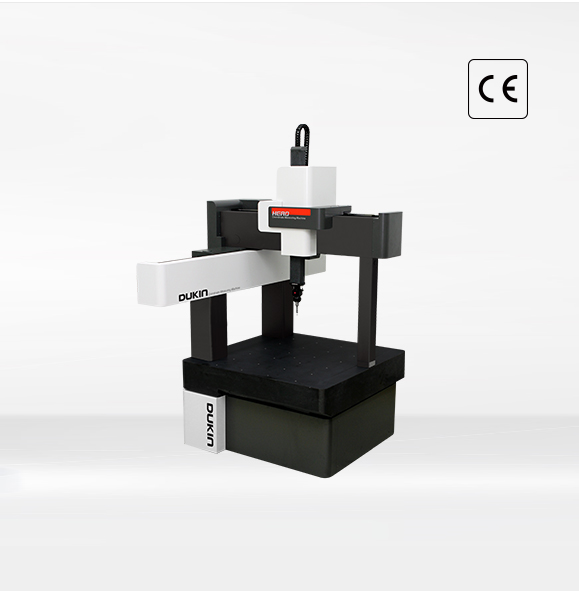

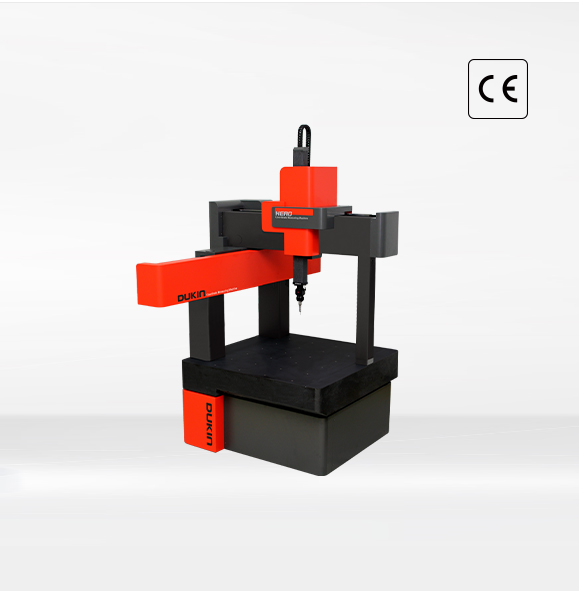

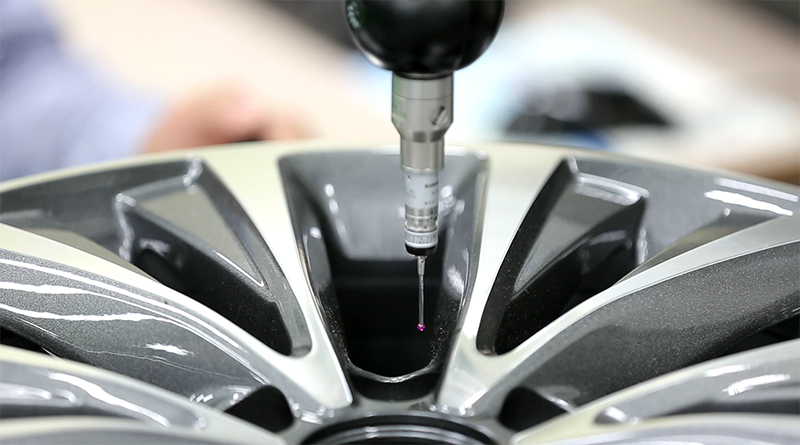

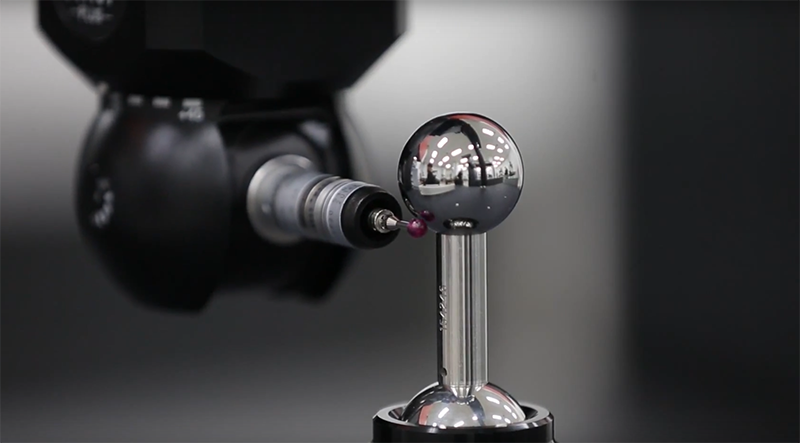

      Bridge Coordinate Measuring Machine (Medium Size)
      HERO

      Best suited to measurement of small and medium precision parts

      Adopted L type bridge structure which improves robustness and accuracy

      Contact Sales
      Feature

      • · Adopted L type bridge structure which improves robustness and accuracy

        · Minimized thermal induced errors due to the use of full granite on all axes and structures · Air bearings on all axes for high stability at high travel speeds

        · Adopted stable light weight structure which is appropriate to high-speed precision measurement


      • · Best suited to measurement of small and medium precision parts

        · High quality and cost-effective design

        · CE certified in accordance with ISO 12100:2010 and 60204-1:2006+A1:2009


      Specifications



      MODEL
      785S
      7106S
      8127S
      Measuring Range (mm)
      X
      700
      700
      800
      Y
      800
      1000
      1200
      Z
      500
      600
      700
      Overall Dimensions (mm)
      X1
      1600
      1600
      1700
      Y1
      1950
      2150
      2350
      Z1
      2350
      2550
      2750
      Z2
      1800
      1900
      2000
      Z3
      680
      680
      680
      Resolution (μm)
      0.1

      Maximum Permissible Error

      per ISO 10360-2 (μm, L:mm)


      		Standard
      EO,MPE
      1.9+L/300
      2.4+L/300
      RO,MPL
      1.9
      2.4
      High Accuracy
      EO,MPE
      1.4+L/300
      1.6+L/300
      1.9+L/300
      RO,MPL
      1.4
      1.6
      1.9
      Maximum Velocity (mm/s)
      500
      Air Requirements (kg/cm2, ℓ/kg)
      3, 35
      Maximum Workpiece Weight (kg)
      1000
      1200
      1500
      Machine Weight (kg)
      1350
      1550
      1860


      E0, R0 (High Accuracy) with SP25M


      ■ Specification are subject to change without notice

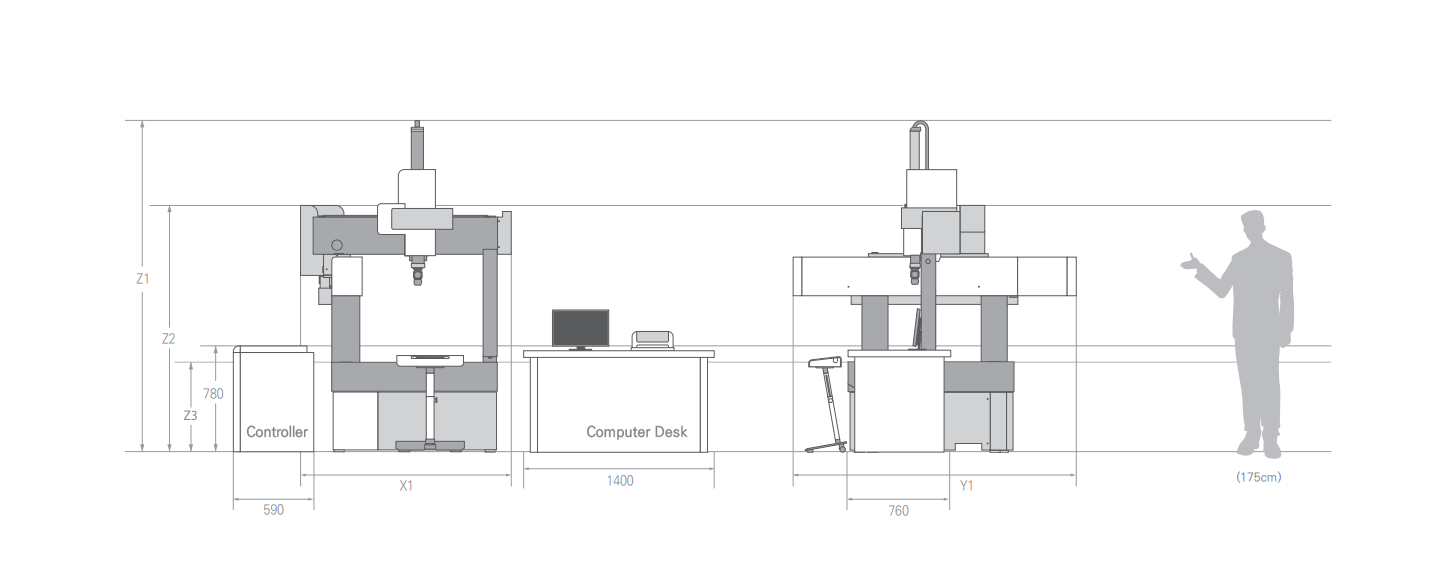

      System Dimension

      Specification are subject to change without notice


      Available software
      CMM Software
      NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

      Accessory

      • Joystick

      • 5-Axis Probe System

      • 3-Axis Probe System

      • Manual Probe System

      • Touch Probe Sensor

      • Scanning Probe Sensor

      • Laser Scanner

      • Auto Changer Rack

      • Stylus and Fixtures
