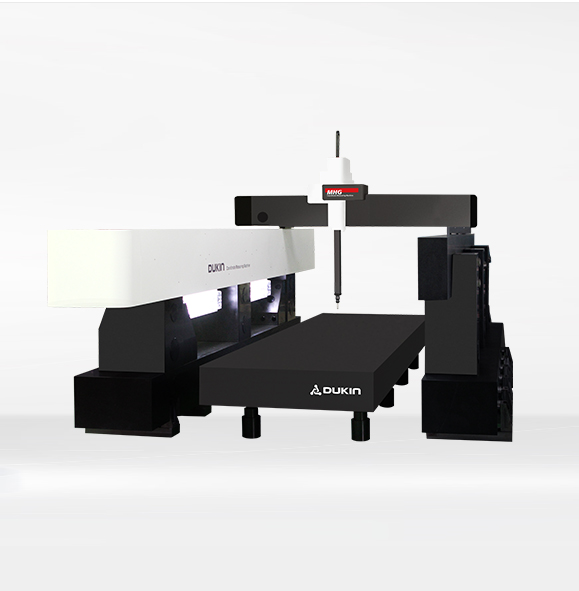

      Gantry Coordinate Measuring Machine (Large Size)
      MHG

      Excellent dynamic reliability with Gantry type structure

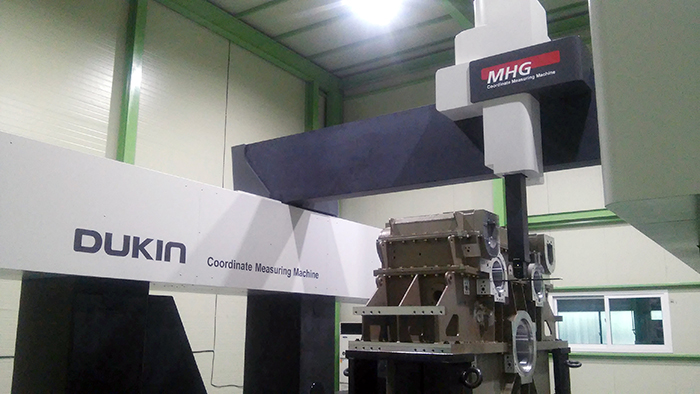

      Best suited to measurement of large parts such as automotive, shipyards, and aerospace industry

      Contact Sales
      Feature

      • · Excellent dynamic reliability with Gantry type structure

        · Provides excellent operation speed due to adoption of dual drive transfer system

        · Air bearings on all axes for high stability at high travel speeds

        · Adopted granite on all axes which guarantees high thermal stability and maintains measuring precision

        · Adopted specialized rigid air bearing which maintains structural stability, rigidity, and high precision

      • · Best suited to measurement of large parts such as automotive, shipyards, and aerospace industry

        · High quality and cost-effective design

      Specifications


      MODEL
      X
      Y
      Z
      Measuring Range (mm)
      2000 ~ 3500
      2500 ~ 6000
      1000 ~ 2000

      Maximum Permissible Error

      per ISO 10360-2 (μm, L:mm)

      EO,MPE
      8.0+L/150 ~ 15.0+L/150
      RO,MPL
      8.0 ~ 15.0
      EO, RO with TP200 or TP7M


      ■ Specification are subject to change without notice.

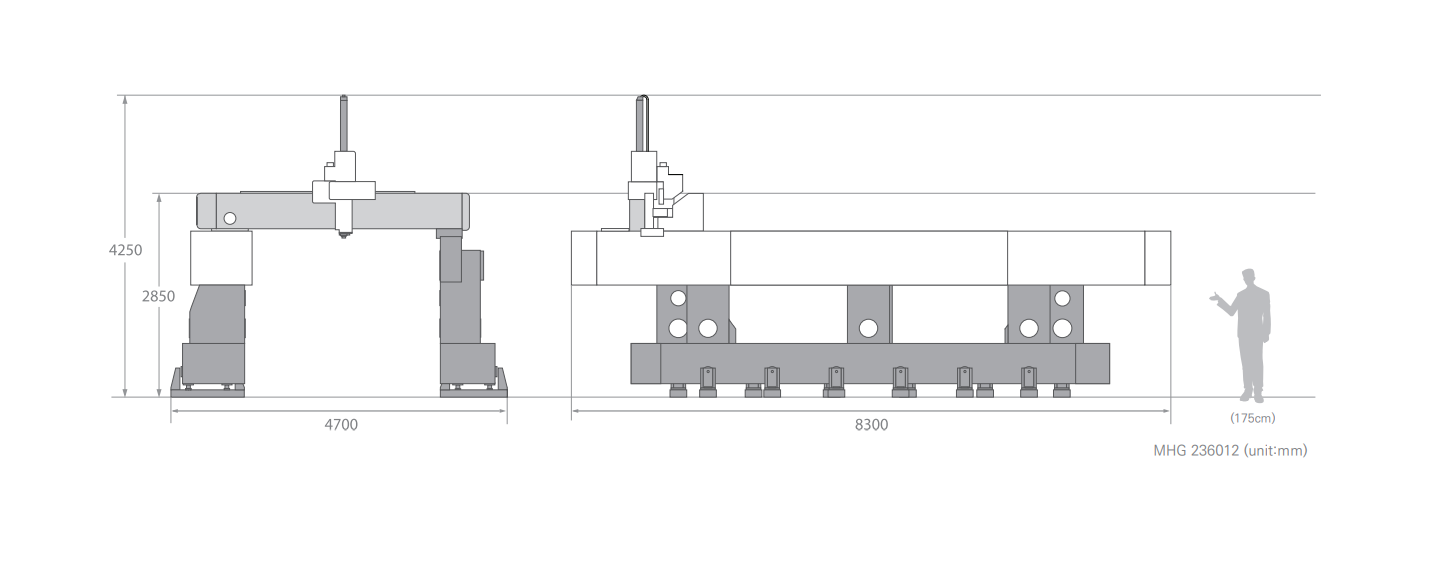

      System Dimension

      Specification are subject to change without notice


      Available software
      CMM Software
      NeuroMeasure is the software for 3-dimensional measuring machine by combining measurement technology and CAD & Simulation. Our software is the world’s best solution for 3-dimensional measuring process which combines specialized technology, user convenience, various analysis method, interactive programming, and high-quality graphical inspection report developed and improved by real CMM users and experts.

      Accessory

      • Joystick

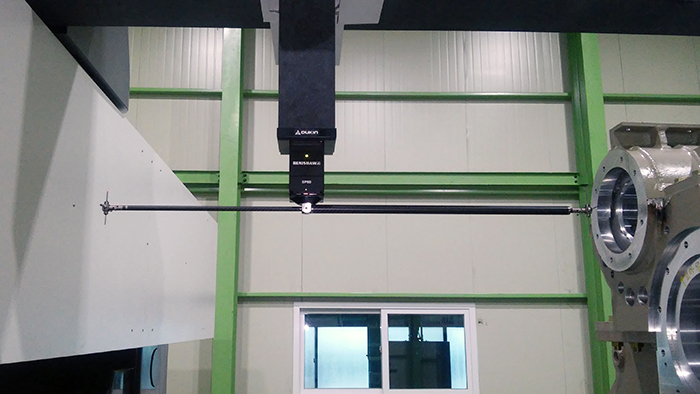

      • 5-Axis Probe System

      • 3-Axis Probe System

      • Manual Probe System

      • Touch Probe Sensor

      • Scanning Probe Sensor

      • Laser Scanner

      • Auto Changer Rack

      • Stylus and Fixtures
