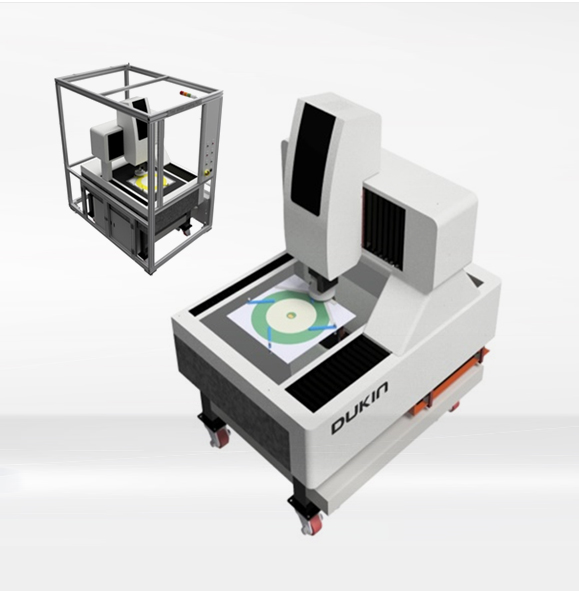

Test Wheel Abrasion Measurement System

Measuring abrasion of test wheel mounting holes to store small capacitors like MLCC

Classification of classification by total inspecting the worn condition of the hole

Periodic management of test wheel condition and stock linked with manufacturing process


Contact Sales
Feature
  • Process Performance

    · Measuring range: X - 450mm, Y - 500mm, Z - 150mm

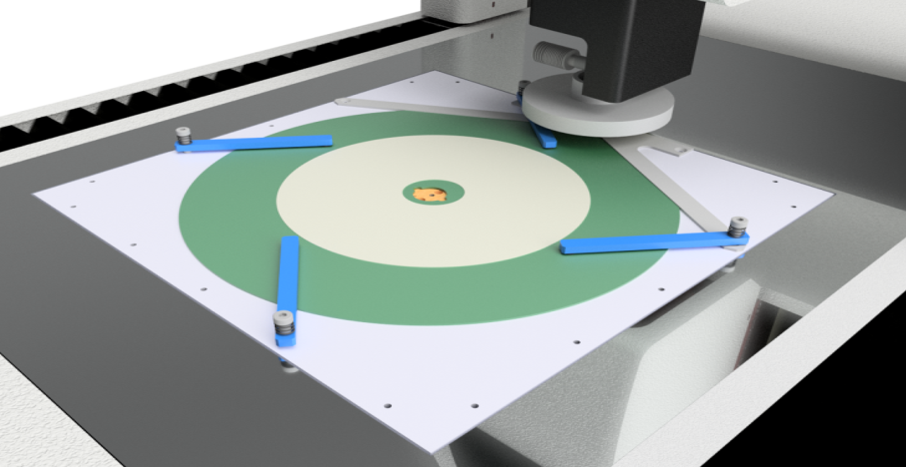

    · Application of adsorbable porous ceramic vacuum chuck

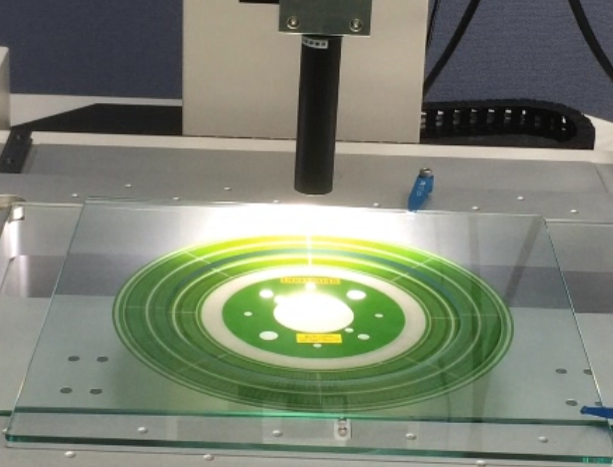

    · Optical system – CCD camera, coaxial light, ring light, telecentric lens

    · Bad hole marking system

    · Application of chamber & area sensor for safety

  • Productivity / Hardware

    · The maximum length X minimum length of hole since the shape of the hole is NOT uniform

    · Outer Diameter of the Workpiece: Min – Ø274mm, Max – Ø380mm

    · Tact Time: < 10 min (Only measuring time)

    · Automatically mark defective holes with a stamp

    · Receive parts information with the barcode reader

    · Customize Hardware / UI Software

Specifications


Parameter
Categorization
Travel Length
Type
Measuring Machine
X
500mm
DC Servo Motor & LM Guide
Y
600mm
DC Servo Motor & LM Guide
Z
150mm
DC Servo Motor, Ball Screw & LM Guide
Vacuum chuck
Width X Height
450mm X 450mm
SUS Base Porous Ceramic Chuck
MPE
XY = 2.5+L/300, Z=2.5+L/200 (um, L:mm)

■ Customizable Hardware/Software UI
