Feature
-
Process Performance
· Tilt/Rotation Table System
- Tilt: -100 ~ +5deg
- Rotation 1, 2: 360deg
- Work Table: Ø150
- Max Payload Horizontal: 50 kg
- Max Payload Vertical: 30 kg
· Laser: Ytterbium Fiber Laser
· Stage Wight: 3.5 ton
-
Productivity / Hardware
· Printing bi-materials

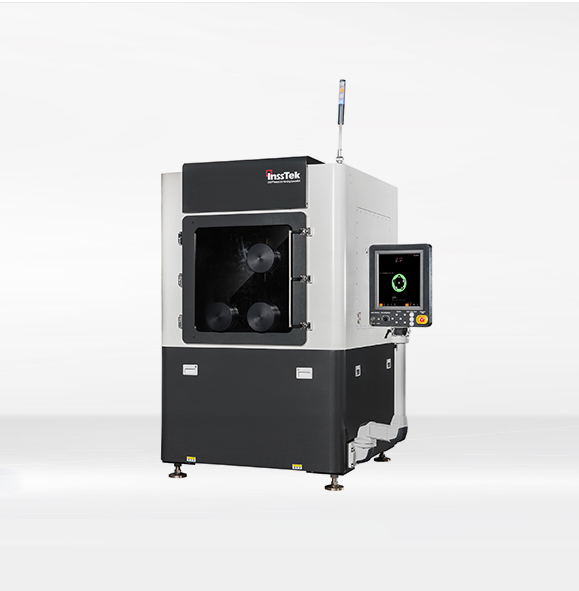

· Atmosphere controlled system with chamber
- Gas: Argon
- Oxygen & Moisture: ≤ 1ppm
· 3D printing using Direct Energy Disposition(DED) technology

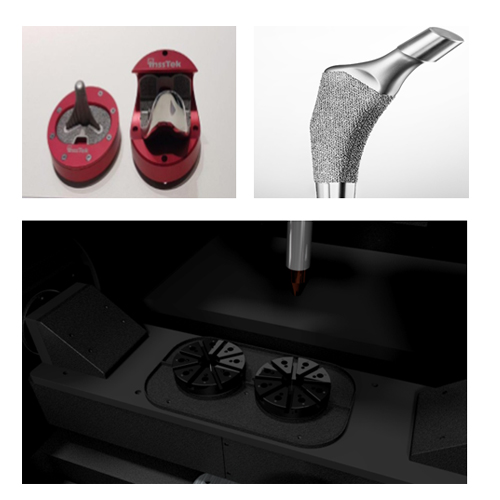

· Porous coating for making artificial joint
· Application of external display arm for convenience
· Application of large safety window to secure visibility
· Application of 2 LM guideways for stable drive
· Application of high precision bearing to minimize tremor and tilt
· Application of bellows covers to prevent powder and dust
Specifications
XYZ Linear Gantry Motion System | Tilt/Rotating Table (A/C) System | ||||||
X | Y | Z | A | C1 | C2 | ||
Stroke | 300 mm | 300 mm | 230 mm | Stroke | -100 ~ +5° | 360° | 360° |
Max Velocity | 200 mm/s | 200 mm/s | 150 mm/s | Max Velocity | 0.5 RPS | 1 RPS | 1 RPS |
Max Acceleration | 5000 mm/s2 | 5000 mm/s2 | 500 mm/s2 | Max Acceleration | Customizable | ||
Resolution | 1 um | 1 um | 1 um | Run out (Axia Radial) | Customizable | ||
Accuracy | Customizable | Accuracy | Customizable |
■ Customizable

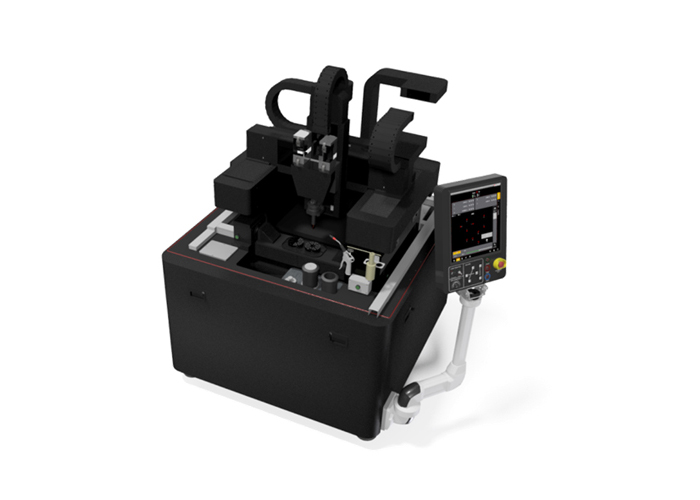

Hardware/Software UI
